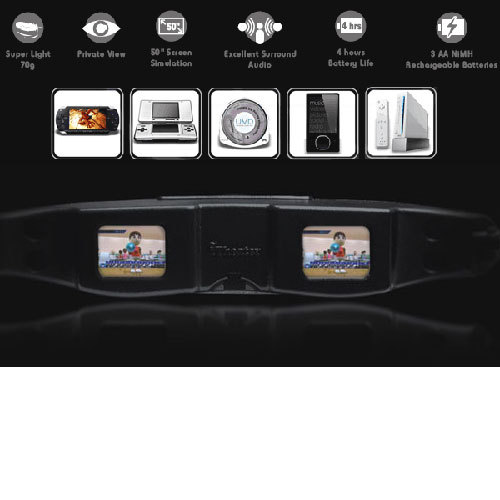

The iTheater features a sleek, ergonomically comfortable and lightweight design - but don't let the small package fool you. All the necessary electronics and optics have been integrated into this compact, stylish, video-eyewear product. You just simply plug this wireless eyewear into your favorite video source (DVD, VCR, Game Consoles) with the included AV cables. The combination of video microdisplays, adapters, surround-sound stereo and battery pack, make it ideal for consumers to privately view theater-quality video, photos and websites from small mobile devices such as cell phones, portable DVD players, and personal multimedia players.

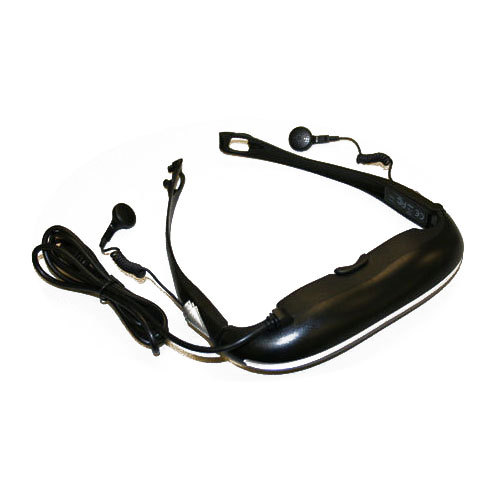

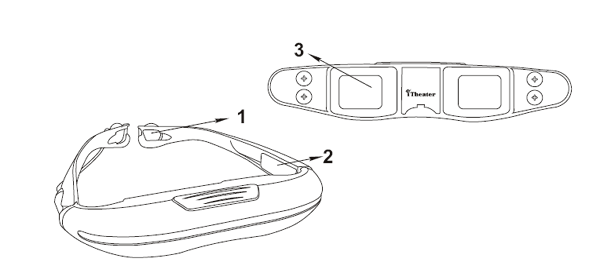

Product Layout

1. Earphones
2. Battery
3. Screen

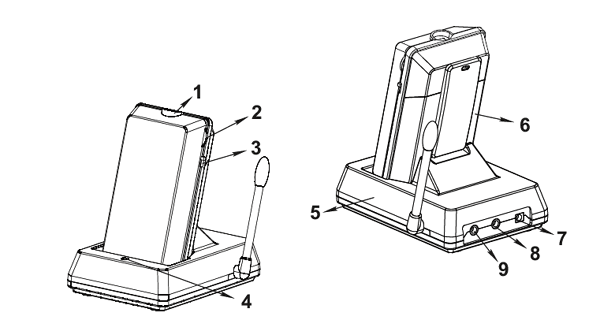

Transmitter / Receiver

1. Connection jack of the Eyewear
2. Volume control
3. Power ON/OFF switch
4. Charger indicator LED
5. Transmitter / Charger
6. Battery compartment
7. DC in jcak
8. AV in jack
9. AV out jack

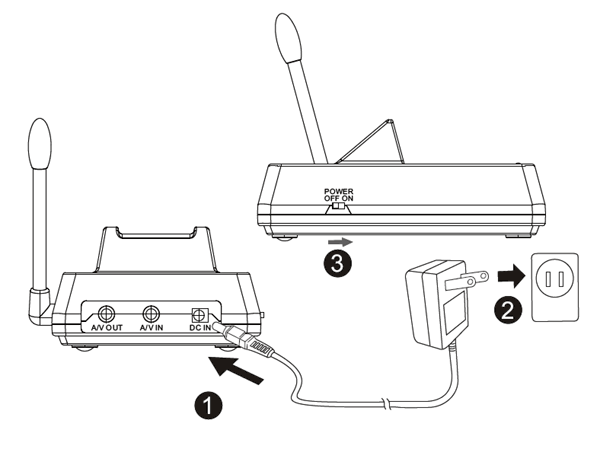

Power Supply Transmitter

1. Plug one end of the provided power adapter into a wall outlet and the other end into the bottom of the Transmitter. Note: Use the adapter labeled OUTPUT: 6V DC with the Transmitter.
2. Slide the ON/OFF/ switch to the ON position.

How to charge Troublesshooting

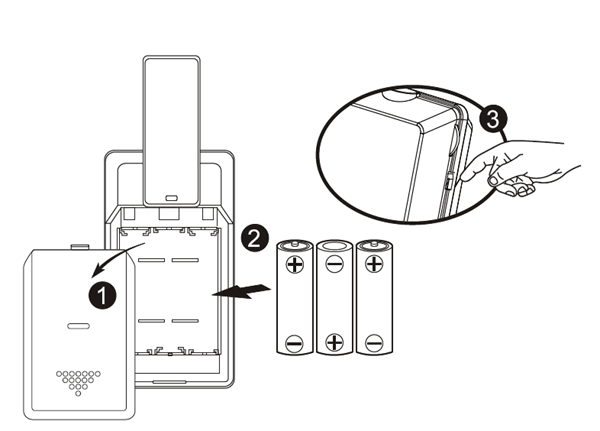

1. Open the battery compartment cover on the rear of the Receiver.
2. Insert 3 AA-size rechargeable batteries (follow the plus (+) and minus (-) signs on the diagram inside the battery compartment).
3. Close the battery compartment cover, and make sure it is locked securely.
   • Note 1: Never mix old batteries with new ones.
   • Note 2: Remove the batteries from the receiver if you do not plan to use it for a prolonged period of time.
4. Slide the POWER switch to the ON position.

How to charge

1. Insert the Charger (Transmitter) adapter into the power socket.
2. Connect the Charger adapter with the Charger (Transmitter).
3. Connect the Receiver to the Charger in the direction as illustrated, and the Charger indicator will light red to indicate that it is being charged. When the Charger indicator lights red off, it indicates the battery is charged completely.
4. When the battery is completely charged, you can remove the Receiver from the Charger (Transmitter).

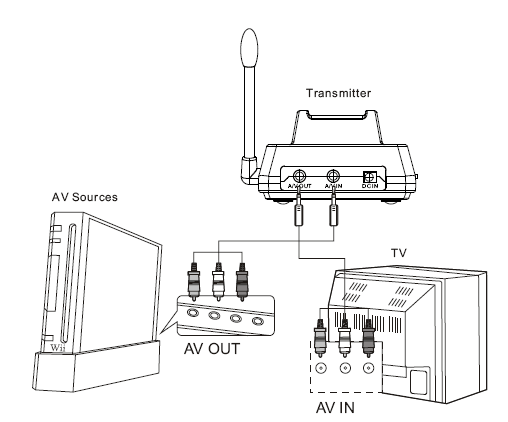

• Connect the mini plug of the provided AV cables to the AV jack on the rear of the transmitter; connect the other end of the cable to the AV jacks of the AV component labeled LINE OUT.

• If you are not getting any signal at all
• Make sure the camera and the monitor are turned on.
• Make sure the power plugs are pushed all the way in.

• Resolution: 230k pixels .
• Suitably for all usual video and audio signal sources .
• Connectable to commercial play consoles .
• Unimpaired playing by integrated headphones.

• Aspect ratio 4:3
• Resolution 320x240
• Contrast ratio 200:1
• Viewing angle 25 (diagonal)
• Image size 50" at 2,5m
• Video system NTSC / PAL / SECAM
• Power adapter 6V / 800mA
• Power consumption Max. 350mA

• AV Transmit Frequency: 920 MHz
• AV Signal Range: 10 meters (30 feet) clear line of sight
• Antenna: Built-in omni-directional antenna
• A/V mod/demod. method: FM
• Audio: Stereo audio input and output
• Video: Composite video input and output
• Dimensions:
  • 8.8 (W) x 4.6 (H) x 11.0 (D) cm for transmitter
  • 5.9 (W) x 10.9 (H) x 3.9 (D) cm for receiver
• Weight: 85.3g / 94g transmitter/receiver
• Power: DC 6V, 800mA for transmitter
• DC 6V, 800mA or 3 AA rechargeable for receiver
• Operating temperature: 0 ~ 40 (32 ~ 104 )

• One Eyewear
• One Transmitter
• One Receiver
• Two AV (Audio/Video) Cables
• Two Power Adapters
• User's Manual

For support assistants, please call 714-523-2005
